X1G005601018200为何OSC晶振能成为无线?？橛τ玫恼缪?爱普生公司的闪光点总是能够轻易被用户快速捕捉到，随着自身能力的不断增强，所生产出来的产品呈现出完美状态，经过自身不断用心钻研，生产出来的SMD晶振产品获得广大用户的认可，并针对用户的需求开发更多优质的产品线，同时也迎来了许多的机会，这是爱普生公司一路的成长故事，正是因为有了那些敢于克服挫折的时刻，才显得如此熠熠生辉。

Product Number	爱普生晶振	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G005601017400	SG-8018CG	33.500000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017500	SG-8018CG	3.570000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017600	SG-8018CG	8.037500 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017700	SG-8018CG	80.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017800	SG-8018CG	35.890700 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018000	SG-8018CG	72.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018100	SG-8018CG	72.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018200	SG-8018CG	75.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018300	SG-8018CG	75.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018400	SG-8018CG	49.152000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018500	SG-8018CG	98.304000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018600	SG-8018CG	98.304000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018700	SG-8018CG	37.125000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018800	SG-8018CG	33.330000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018900	SG-8018CG	33.330000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019000	SG-8018CG	18.432000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019100	SG-8018CG	18.432000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019200	SG-8018CG	7.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019300	SG-8018CG	8.727000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019400	SG-8018CG	21.606000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019500	SG-8018CG	39.321600 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm

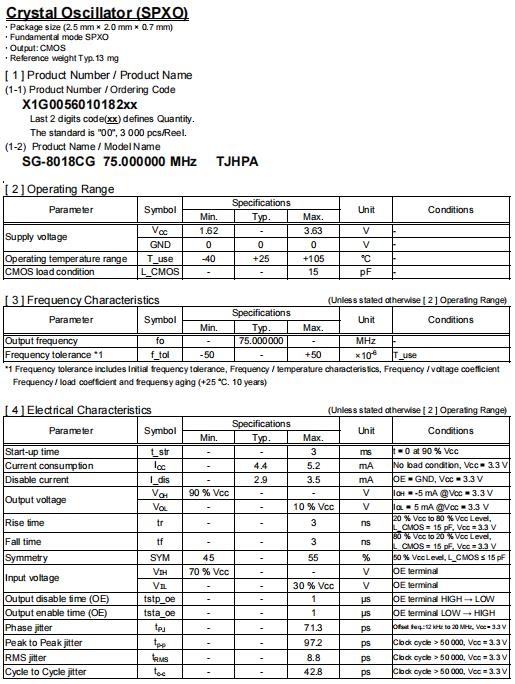

爱普生很高兴推出了这款SG-8018CG晶振，石英晶体振荡器编码X1G005601018200，频率75.000000兆赫，输出WaveCMOS，电源电压1.62 ~ 3.63 V，尺寸(LxWxH)2.50 x 2.00 x 0.80 mm，工作温度-40至+105°C，频率公差±50ppm，额外的OptionsN /OSC类型可编程时钟OSC，具有非常高的稳定性和可靠性能，非常适用于对设计面积敏感的无线?？橛τ?，智能穿戴设备设计,SG-8018CG晶振其小体积,高精度,低功耗的特性以及优良的耐热性与耐环境特性,成为无线?？橛τ玫淖罴阎?。
