汽车?？仄饔τ糜胖实挠性淳д馲1G005601018100，爱普生公司自成立以来一直坚持把每一款产品的工艺，进行严格化，高标准的把控，并采用高新技术的集合，塑造出极高的产品价值，为打造高超的商业价值，使得所生产的石英晶振产品能够一路保持在晶振产品的畅销榜，同时又实现了名利以及财富的收获，并获得无数的好评与称赞。

贴片振荡器	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G005601017400	SG-8018CG	33.500000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017500	SG-8018CG	3.570000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017600	SG-8018CG	8.037500 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017700	SG-8018CG	80.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017800	SG-8018CG	35.890700 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018000	SG-8018CG	72.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018100	SG-8018CG	72.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018200	SG-8018CG	75.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018300	SG-8018CG	75.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018400	SG-8018CG	49.152000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018500	SG-8018CG	98.304000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018600	SG-8018CG	98.304000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018700	SG-8018CG	37.125000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018800	SG-8018CG	33.330000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018900	SG-8018CG	33.330000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019000	SG-8018CG	18.432000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019100	SG-8018CG	18.432000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019200	SG-8018CG	7.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019300	SG-8018CG	8.727000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019400	SG-8018CG	21.606000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019500	SG-8018CG	39.321600 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm

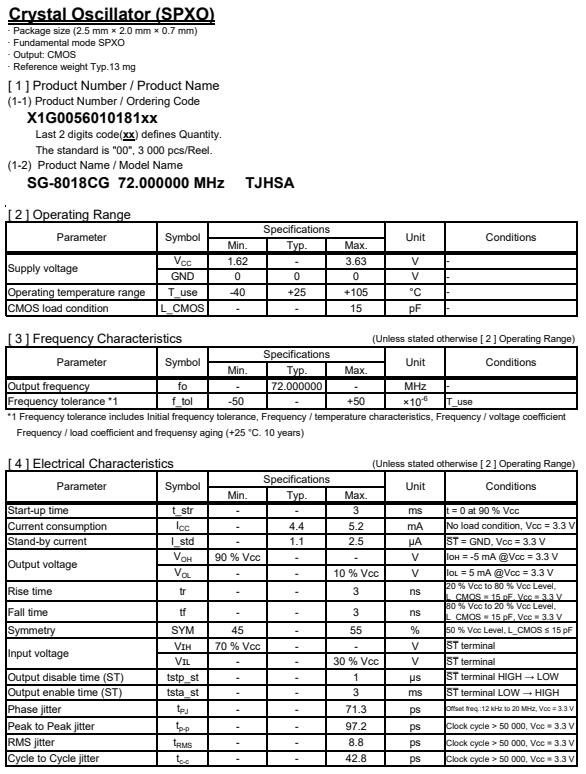

爱普生的这款SG-8018CG晶振，爱普生晶振编码X1G005601018100，频率72.000000兆赫，输出WaveCMOS，电源电压1.62 ~ 3.63 V，尺寸(LxWxH)2.50 x 2.00 x 0.80 mm，工作温度-40至+105°C，频率公差±50ppm，额外的OptionsN /OSC类型可编程时钟OSC，这是一款低抖动，低相噪的可编程晶振，有源晶振，爱普生石英晶振，具有非常高的稳定性,非常适用于对设计面积敏感的汽车?？仄?，智能穿戴设备设计,具备优良的耐热性与耐环境特性,成为汽车?？仄?，智能穿戴设备时钟的最佳之选。
