编码X1G005571004300是一款低损耗的医疗设备OSC晶振，日系频率元器件知名制造商爱普生公司，通过不断放大自身的影响力，实现名利双赢的局面，同时也赢得广大用户的信赖，这是一家非常有眼光的全球型企业，对待任何问题，都懂得主动承担起社会责任。主要供应高性价比的有源晶振，石英晶振，温补晶振等产品，当今世界中，人类正面临着气候变化、新冠疫情等牵一发而动全身的全球?；?，想要成为消费者心中不可或缺的企业，必然要在产品之外给予消费者更多社会价值。

Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G005571003200	SG-8018CA	32.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003300	SG-8018CA	8.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003400	SG-8018CA	8.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003500	SG-8018CA	14.745600 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003600	SG-8018CA	14.745600 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003700	SG-8018CA	12.288000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003800	SG-8018CA	12.288000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003900	SG-8018CA	33.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004000	SG-8018CA	33.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004100	SG-8018CA	30.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004200	SG-8018CA	30.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004300	SG-8018CA	26.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004400	SG-8018CA 晶振	26.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004500	SG-8018CA	24.576000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004600	SG-8018CA	24.576000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004700	SG-8018CA	100.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004800	SG-8018CA	100.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004900	SG-8018CA	4.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571005000	SG-8018CA	4.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571005100	SG-8018CA	66.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571005200	SG-8018CA	66.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm

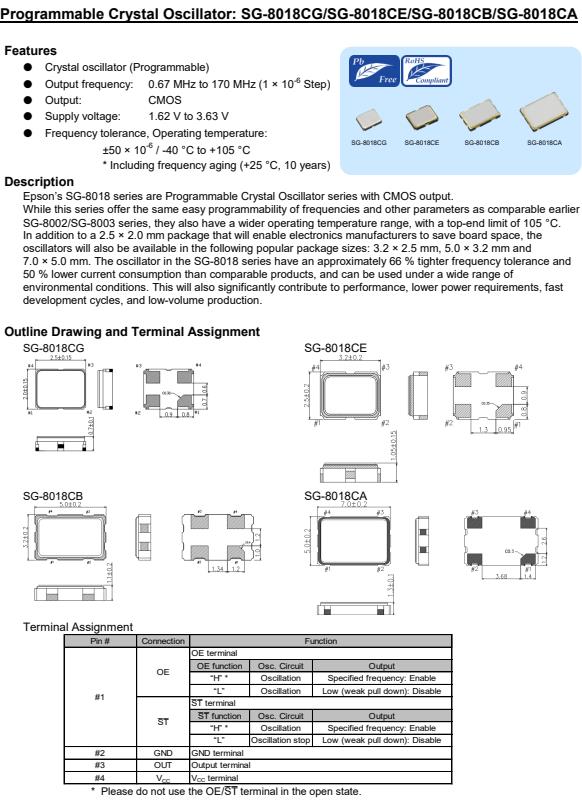

爱普生公司很高兴推出了SG-8018CA晶振，医疗电子编码X1G005571004300，Frequency26.000000兆赫，输出WaveCMOS，电源电压1.62 ~ 3.63 V，尺寸(LxWxH)7.00 x 5.00 x 1.40 mm，工作温度-40至+105°C，频率公差±50ppm，额外的OptionsN /OSC类型可编程时钟OSC，具有低损耗，低抖动，高品质的特点，适合用于华为手机无线充电器，投影机，医疗设备，电子产品等领域。
