更多>>Connor-Winfield低抖动的TCXO晶振D75F-025.0M用于AOA定位
来源：http://www.brownl.cn 作者：fuys 2023年05月19
Connor-Winfield是一家具有前瞻性的全球化品牌制造商，主要向全球提供高质量的有源晶振产品组合，并为用户提供理想的解决方案，所制作出来的产品被广泛应用各个领域，其中包含用于电信和数据通信应用的特殊功能ASICs，以及用于同步以太网应用的基于全球定位系统(GPS)的定时解决方案等领域.对我们来说，质量不仅仅是一种技术或系统，它是一种包罗万象、毫不妥协的理念，生产的产品不仅能精确满足客户的质量要求，还能在各方面超越他们。
| 原厂代码 | 品牌 | 型号 | 频率 | 工作温度 |
| OH200-51003CF-012.8M | Connor-Winfield 进口TCXO晶振 | OH200 | 12.8MHz | 0°C ~ 70°C |
| OH200-51003CV-005.0M | Connor-Winfield 进口TCXO晶振 | OH200 | 5MHz | 0°C ~ 70°C |
| OH100-61003CV-012.8M | Connor-Winfield 进口TCXO晶振 | OH100 | 12.8MHz | -40°C ~ 85°C |
| OH200-51003CF-005.0M | Connor-Winfield 进口TCXO晶振 | OH200 | 5MHz | 0°C ~ 70°C |
| OH100-50503CF-020.0M | Connor-Winfield 进口TCXO晶振 | OH100 | 20MHz | 0°C ~ 70°C |
| OH200-51003CV-010.0M | Connor-Winfield 进口TCXO晶振 | OH200 | 10MHz | 0°C ~ 70°C |
| OH300-61003CV-012.8M | Connor-Winfield 进口TCXO晶振 | OH300 | 12.8MHz | -40°C ~ 85°C |
| OH300-61003CF-012.8M | Connor-Winfield 进口TCXO晶振 | OH300 | 12.8MHz | -40°C ~ 85°C |
| OH300-50503CF-020.0M | Connor-Winfield 进口TCXO晶振 | OH300 | 20MHz | 0°C ~ 70°C |
| OH300-70503CF-024.576M | Connor-Winfield 进口TCXO晶振 | OH300 | 24.576MHz | -20°C ~ 70°C |
| OH300-50503CF-012.8M | Connor-Winfield 进口TCXO晶振 | OH300 | 12.8MHz | 0°C ~ 70°C |
| OH300-60503CF-024.576M | Connor-Winfield 进口TCXO晶振 | OH300 | 24.576MHz | -40°C ~ 85°C |
| OH300-61003CF-020.0M | Connor-Winfield 进口TCXO晶振 | OH300 | 20MHz | -40°C ~ 85°C |
| OH300-50503CF-010.0M | Connor-Winfield 进口TCXO晶振 | OH300 | 10MHz | 0°C ~ 70°C |
| OH300-61003CF-040.0M | Connor-Winfield 进口TCXO晶振 | OH300 | 40MHz | -20°C ~ 70°C |
| CWX823-016.384M | Connor-Winfield 进口TCXO晶振 | CWX823 | 16.384MHz | -20°C ~ 70°C |
| CWX823-030.0M | Connor-Winfield 进口TCXO晶振 | CWX823 | 30MHz | -20°C ~ 70°C |
| CWX823-044.736M | Connor-Winfield 进口TCXO晶振 | CWX823 | 44.736MHz | -20°C ~ 70°C |
| HSM93-008.0M | Connor-Winfield 进口TCXO晶振 | HSM9 | 8MHz | 0°C ~ 70°C |
| HSM93-010.0M | Connor-Winfield 进口TCXO晶振 | HSM9 | 10MHz | 0°C ~ 70°C |
| HSM93-040.0M | Connor-Winfield 进口TCXO晶振 | HSM9 | 40MHz | 0°C ~ 70°C |
| DV75D-012.8M | Connor-Winfield 进口TCXO晶振 | DV75D | 12.8MHz | -40°C ~ 85°C |
| D75F-025.0M | Connor-Winfield 进口TCXO晶振 | D75F | 25MHz | 0°C ~ 70°C |
| PM113-311.04M | Connor-Winfield 进口TCXO晶振 | PM | 311.04MHz | 0°C ~ 70°C |
| LM113-311.04M | Connor-Winfield 进口TCXO晶振 | LM113 | 311.04MHz | 0°C ~ 70°C |
| LM113-425.0M | Connor-Winfield 进口TCXO晶振 | LM113 | 425MHz | 0°C ~ 70°C |
| PM113-625.0M | Connor-Winfield 进口TCXO晶振 | PM | 625MHz | 0°C ~ 70°C |
| P212-155.52M | Connor-Winfield 进口TCXO晶振 | P | 155.52MHz | -40°C ~ 85°C |
| T602-040.0M | Connor-Winfield 进口TCXO晶振 | T | 40MHz | -40°C ~ 85°C |
| TB602-050.0M | Connor-Winfield 进口TCXO晶振 | TB | 50MHz | -40°C ~ 85°C |
| OH300-61003CV-020.0M | Connor-Winfield 进口TCXO晶振 | OH300 | 20MHz | -40°C ~ 85°C |
| OH300-61003CV-040.0M | Connor-Winfield 进口TCXO晶振 | OH300 | 40MHz | -20°C ~ 70°C |
| OHSM100-60803CF-020.0M | Connor-Winfield 进口TCXO晶振 | OHSM100-60803CF | 20MHz | -40°C ~ 85°C |
| DOCSC022F-040.0M | Connor-Winfield 进口TCXO晶振 | DOCSC | 40MHz | -40°C ~ 85°C |
| OH4610LF-024.576M | Connor-Winfield 进口TCXO晶振 | OH4 | 24.576MHz | -40°C ~ 85°C |
| OX200-SC-010.0M | Connor-Winfield 进口TCXO晶振 | OX200-SC | 10MHz | 0°C ~ 70°C |
| OH100-50503CV-012.8M | Connor-Winfield 进口TCXO晶振 | OH100 | 12.8MHz | 0°C ~ 70°C |
| DOCAT050F-19.44M | Connor-Winfield 进口TCXO晶振 | * | - | - |
| DOCSC022F-020.0M | Connor-Winfield 进口TCXO晶振 | DOCSC | 20MHz | -40°C ~ 85°C |
| DOCSC022F-024.0M | Connor-Winfield 进口TCXO晶振 | * | - | - |
| DOCSC012F-020.0M | Connor-Winfield 进口TCXO晶振 | * | - | - |
| DOCSC012F-040.0M | Connor-Winfield 进口TCXO晶振 | * | - | - |
| OH4610LF-012.8M | Connor-Winfield 进口TCXO晶振 | OH4 | 12.8MHz | -40°C ~ 85°C |
| OH4610LF-010.0M | Connor-Winfield 进口TCXO晶振 | OH4 | 10MHz | -40°C ~ 85°C |
| OH4610LF-020.0M | Connor-Winfield 进口TCXO晶振 | OH4 | 20MHz | -40°C ~ 85°C |
| CWX823-003.6864M | Connor-Winfield 进口TCXO晶振 | CWX823 | 3.6864MHz | -20°C ~ 70°C |
| CWX823-014.31818M | Connor-Winfield 进口TCXO晶振 | CWX823 | 14.31818MHz | -20°C ~ 70°C |
| CWX823-015.36M | Connor-Winfield 进口TCXO晶振 | CWX823 | 15.36MHz | -20°C ~ 70°C |
| CWX823-019.44M | Connor-Winfield 进口TCXO晶振 | CWX823 | 19.44MHz | -20°C ~ 70°C |
| CWX823-020.48M | Connor-Winfield 进口TCXO晶振 | CWX823 | 20.48MHz | -20°C ~ 70°C |
| CWX823-045.0M | Connor-Winfield 进口TCXO晶振 | CWX823 | 45MHz | -20°C ~ 70°C |

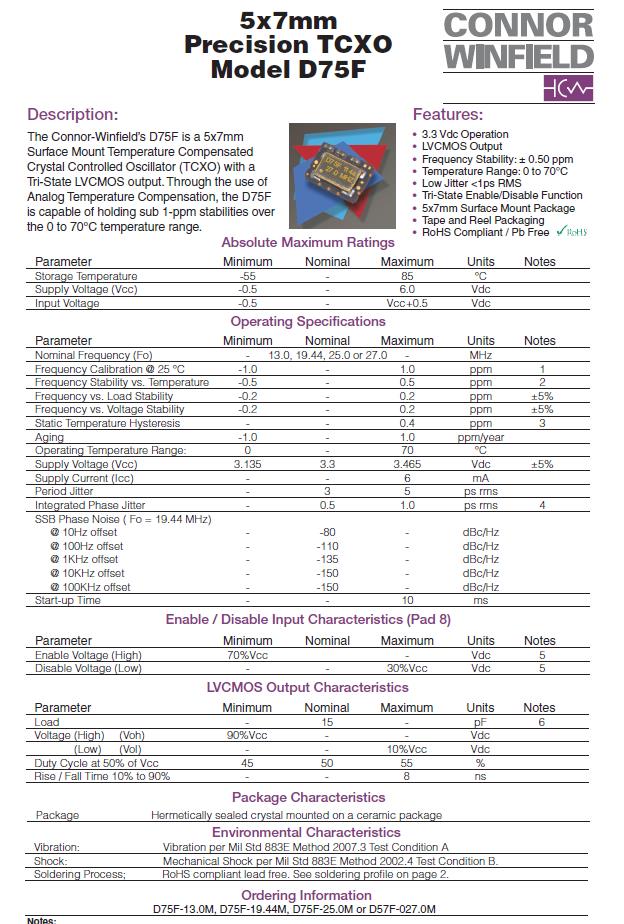

康纳-温菲尔德推出新一代的高性能温补晶振产品编码D75F-025.0M，型号D75F是5x7mm表面贴装温度补偿晶体控制振荡器(TCXO），三态LVCMOS输出。通过使用模拟温度补偿，D75F是否能够保持低于1ppm的稳定性，温度范围0~70℃。

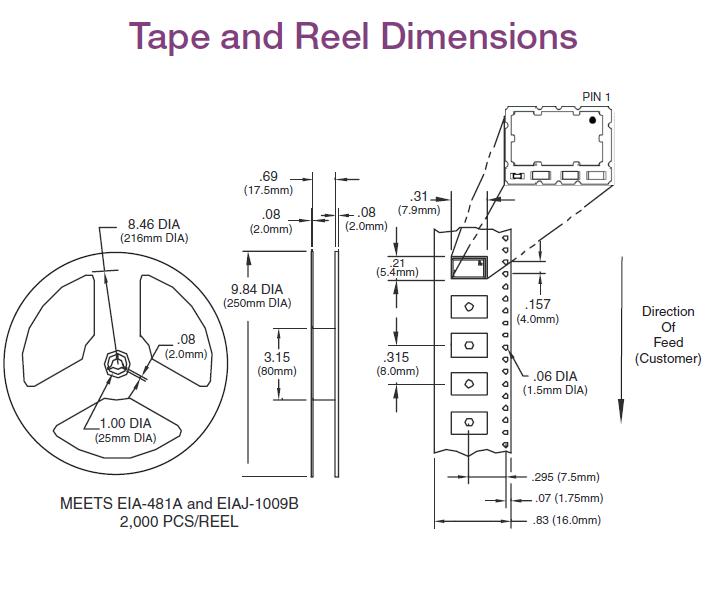

晶振产品特点：3.3Vdc操作，LVCMOS输出，频率稳定性:±0.50ppm，温度范围:0 ~ 70℃，低抖动<1psRMS，三状态启用/禁用功能，5x7mm表面安装包，磁带和卷轴包装，符合RoHS标准/无铅
产品应用：AOA定位，GPS全球导航定位系统，北斗定位，罗拉?？?，数据通信，电子设备等行业。
产品应用：AOA定位，GPS全球导航定位系统，北斗定位，罗拉?？?，数据通信，电子设备等行业。
