Lisle, IL – CTS Corporation (NYSE: CTS) announces performance updates to its standard-grade crystal resonator product portfolio. The updates include the release of a new crystal model and performance upgrades to previously released models, all designed for general application use.
伊利诺伊州莱尔 – CTS 公司（纽约证券交易所代码：CTS）宣布对其标准级石英晶体谐振器产品组合进行性能更新。更新包括新晶体模型的发布和对先前发布的模型的性能升级，所有这些都是为一般应用程序使用而设计的。CTS晶振发布优化了高性能的晶体谐振器435F24M22DVT

The release of the new crystal Model 435 adds to the CTS portfolio a RoHS 6/6 [lead-free], seam-weld,  2-pad ceramic package in the 5.0mmx 3.2mm size.  This is an ideal replacement for comparable glass-seal packages that contain lead [Pb] in the glass frit used during the cover sealing process.  The Model 435 is also an alternative solution to support existing designs that utilize two legacy crystal packages that may be obsolete or slated for obsolescence; the 4-lead plastic small outline J-lead package [4-SOJ] and the 4-pad HC-49/US-SM metal can configuration. See CTS technical brief Alternate Solution for EOL Crystal Packages for specific details on using the CTS 435 package as a substitution for common industry-glass seal models:  Alternate Solution for EOL Crystal Packages.
新石英晶体型号435 的发布为 CTS 产品组合增加了 5.0mmx 3.2mm 尺寸的 RoHS 6/6 [无铅]、缝焊、2 焊盘陶瓷封装。这是在盖密封过程中使用的玻璃粉中含有铅 [Pb] 的同类玻璃密封封装的理想替代品。435型也是支持现有设计的替代解决方案，这些设计利用两个可能已过时或计划过时的传统晶体封装；4 引脚塑料小外形 J 引脚封装 [4-SOJ] 和 4 焊盘 HC-49/US-SM 金属罐配置。CTS晶振发布优化了高性能的晶体谐振器435F24M22DVT

Performance upgrades apply to models 416, 402, 425, 403, and 405. These include expanded frequency range, new temperature option of -40°C to +105°C, lower load capacitance choice, and the addition of common frequency tables.
性能升级适用于 416、402、425、403 和 405 型号。其中包括扩展的频率范围、-40°C 至 +105°C 的新温度选项、更低的负载电容选择以及添加常用频率表。
Standard product features and common market applications for Model 435 are summarized below. Please refer to individual data sheets on our website to view more performance characteristics for all models cited in this release.
CTS晶振公司推出的435型的标准产品特性和常见市场应用总结如下。

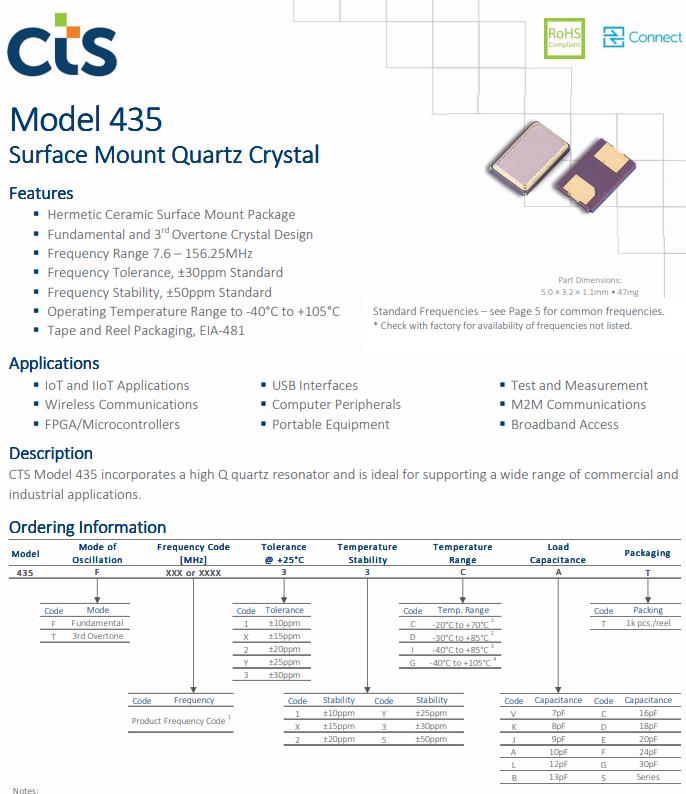

Model 435 Product Features:
435型产品特点：
Product Features
产品特点
5.0mmx3.2mm 2-Pad Ceramic Package
Stability Options – ±10ppm to ±50ppm
Temperature Range to -40°C to +105°
Fundamental or 3rd Overtone Crystal
RoHS 6/6 – Lead-Free
Tape and Reel Packaging
功能特性
密封陶瓷表面安装包
基本和第三泛音水晶设计
频率范围7.6 - 156.25MHz
频率公差，±30ppm标准
频率稳定性，±50ppm标准
工作温度范围-40°C ~ +105°C
卷带包装，EIA-481
应用程序应用
物联网和工业物联网应用
无线通信
FPGA /微控制器
USB接口
电脑外围设备
便携式设备
测试和测量
M2M通信
宽带接入
描述描述
CTS 435型集成了高Q石英谐振器，是支持广泛的商业和工业应用。
